Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
ZSJ-2000
2020 paper moulding machine high quality paper egg carton making machine
Technical Parameters of 2000pcs egg tray machine:
| Egg Tray mould quantity | 12pcs (3*4) | Container Required |
| Raw material | Waste paper |
About 40ft*4with dryer 40ft*1 without dryer |
| Output for egg tray | 1500-2000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 115-150kg/h | |
| The volume of water consumed | 0.45t/h | |
|
Diesel Oil consumption Natural gas consumption |
45Kg/h 50cbm/h |
|
| Workshop dimension | Around400m2 | |
| Electricity Power | 80kw | |
| Machine Weight | 10-35tons around | |
| Egg tray Size | 295mm*295mm 30eggs |
1. pulping system: including the hydrapulper, pump, disk mill, mixer, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly. the raw material is any wastepaper(without plastic) and water.
Hydraulicpulper:

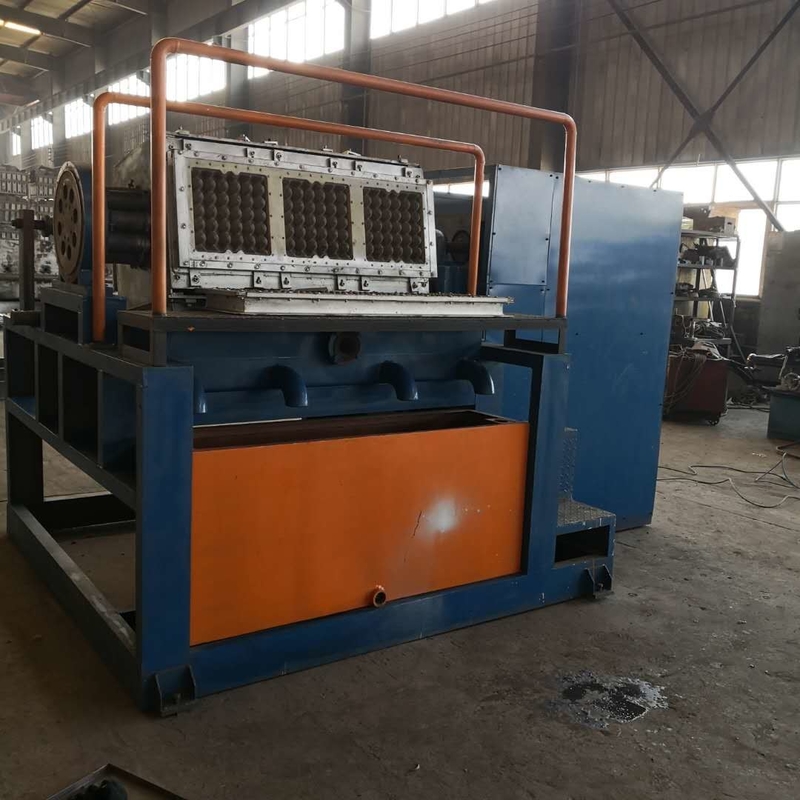

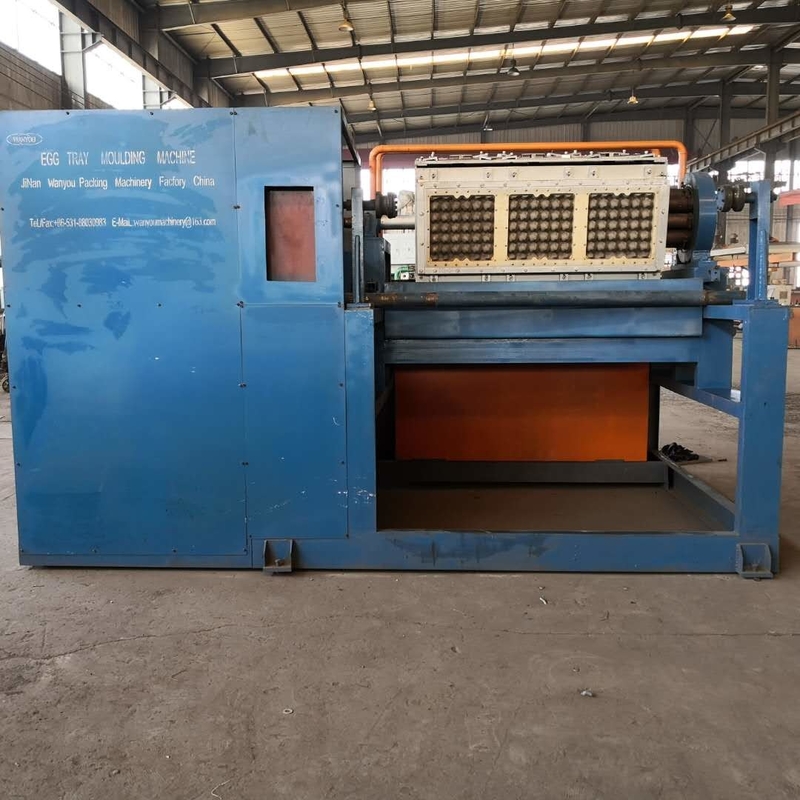

Forming Machine:

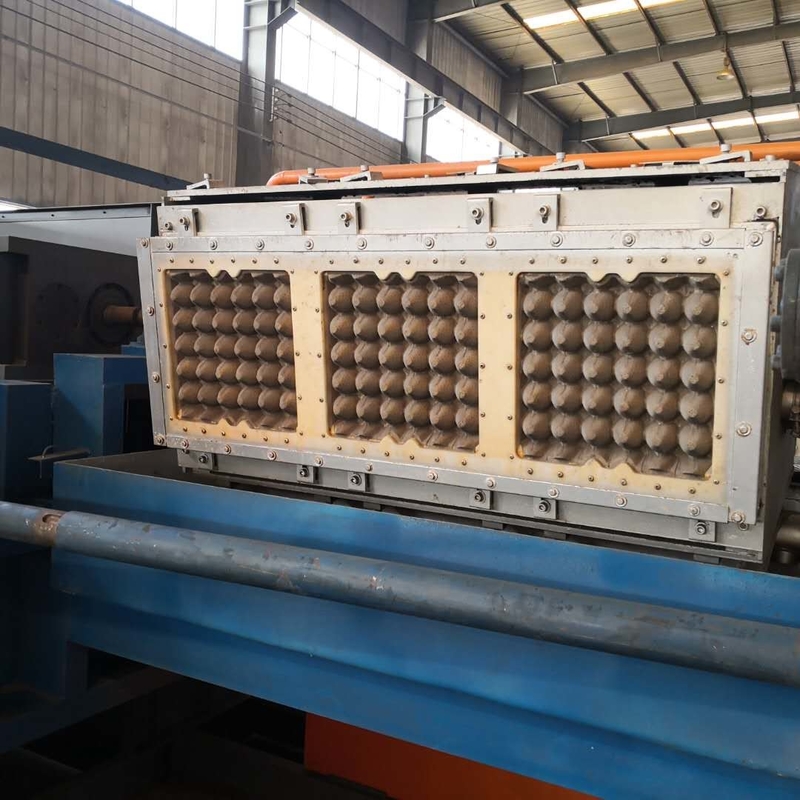

2000pcs egg tray machine with 3*4Faces 12 pcs aluminum forming molds and 3 aluminum trasfer molds.
Drying system:
4 layer Automatic metallic dryer can be choose.
All the machine with 2 years warranty.
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Welcome for more information.
